Product Description

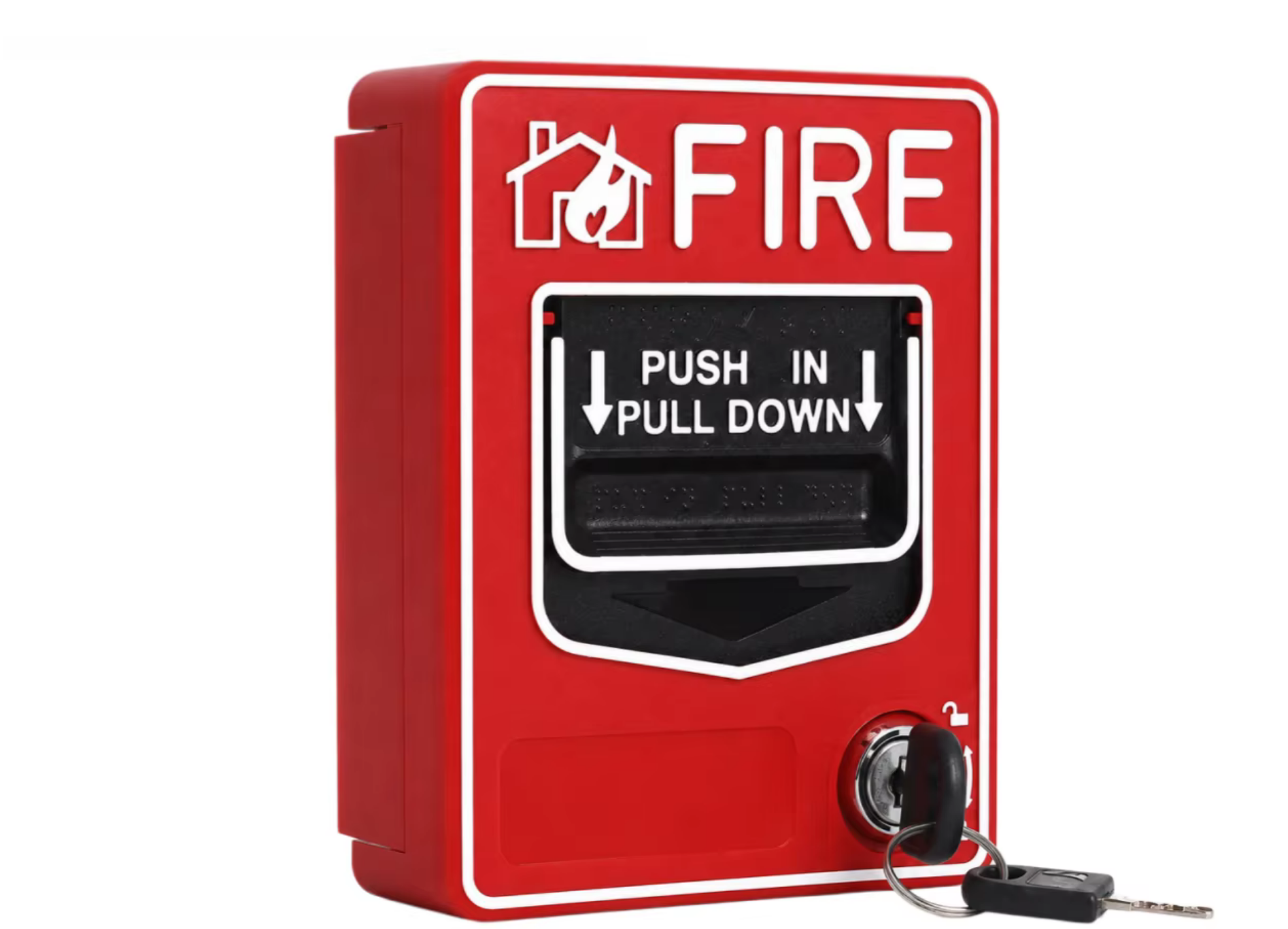

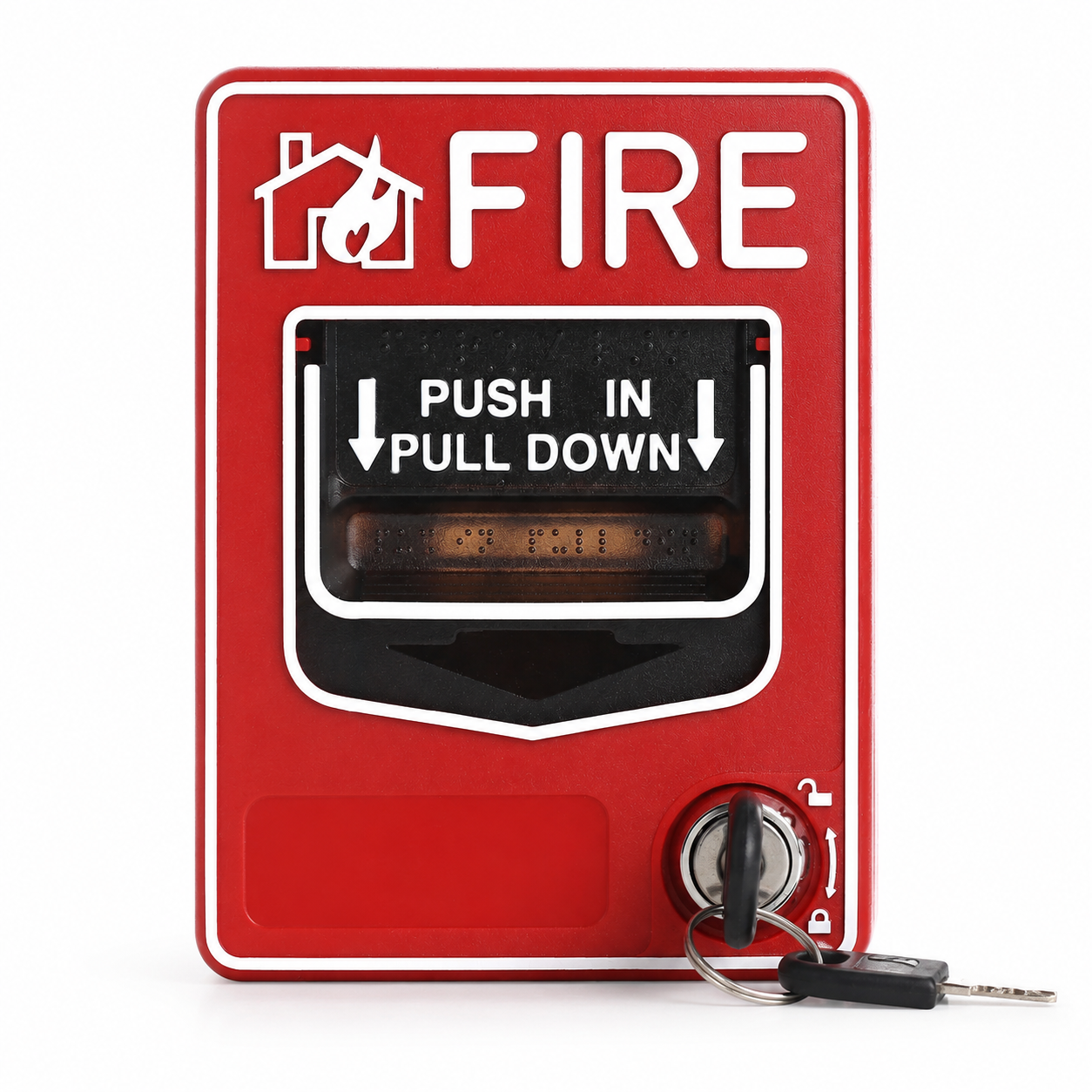

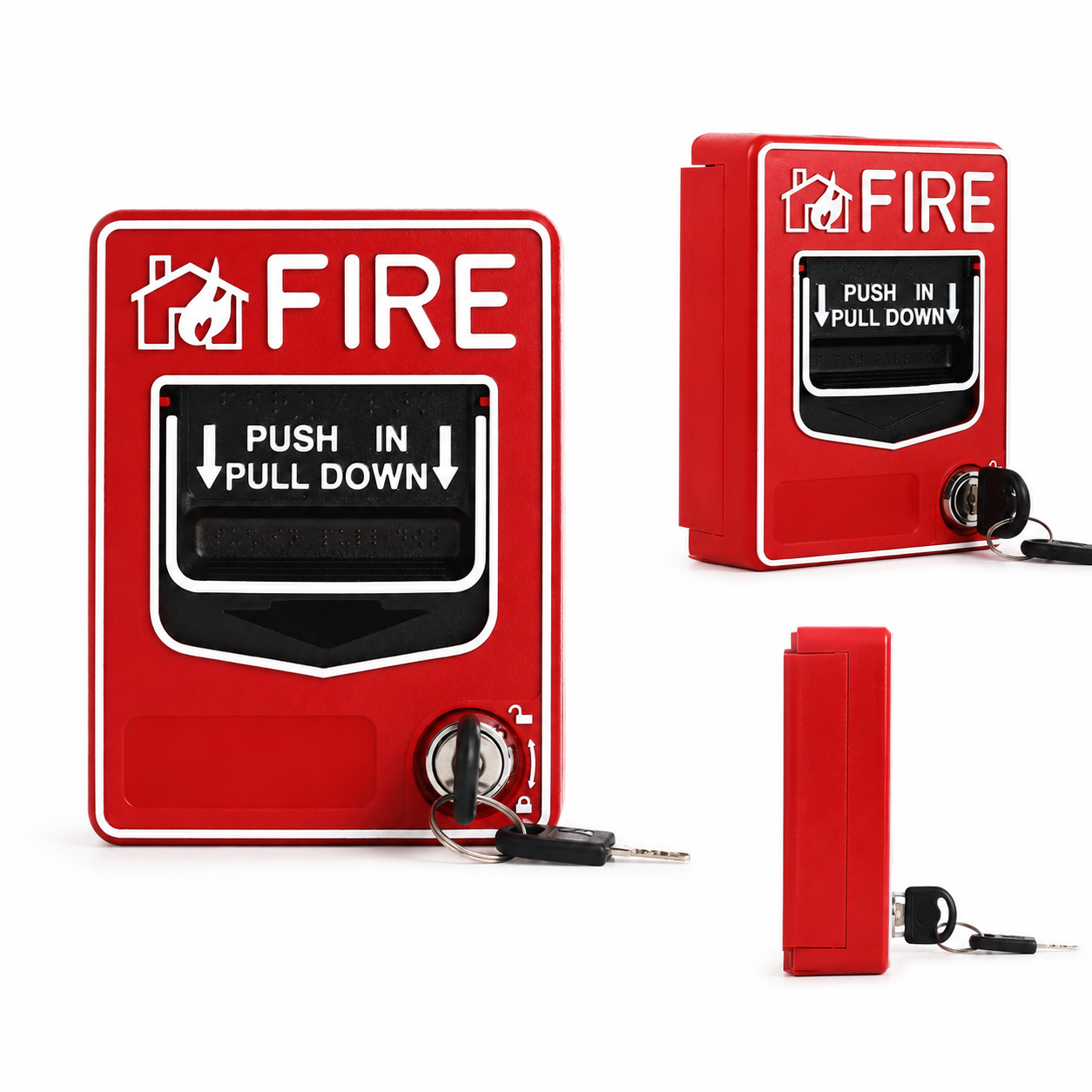

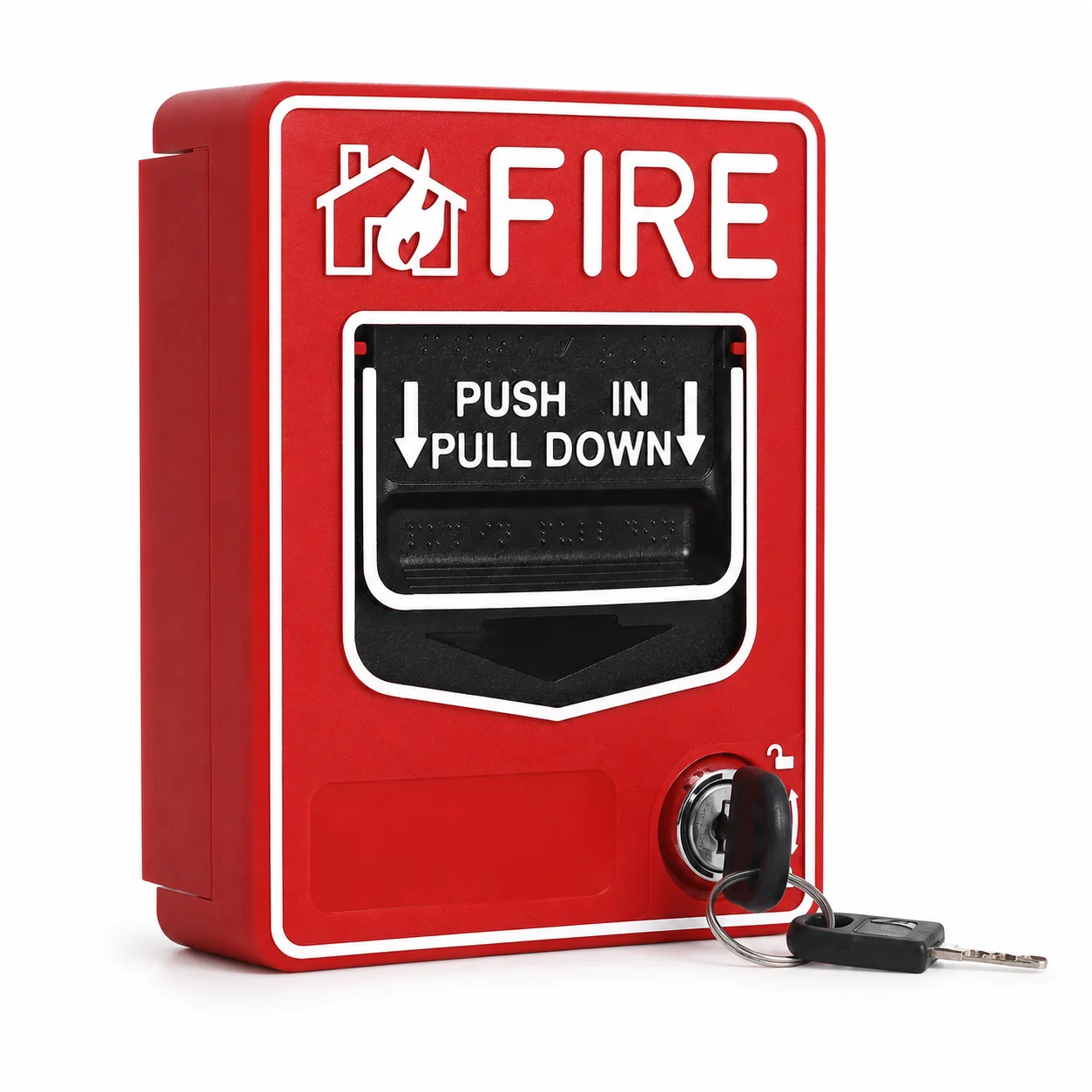

Resettable Manual Fire Alarm Call Point with Key
This resettable manual fire alarm call point is designed for conventional fire alarm systems. It allows users to manually report a fire or emergency condition by pushing in and pulling down the front plate. After activation, the device can be reset by the included key without replacing broken glass, making it convenient for testing, maintenance and repeated use.
It is suitable for offices, schools, hotels, warehouses, shops, apartments, factories, corridors and public fire safety systems.
Main Features
Manual Emergency Activation
Push in and pull down the front plate to activate the fire alarm signal quickly during emergency situations.
Resettable by Key
The call point can be restored using the supplied key after activation. No need to replace glass, easier for maintenance and testing.
Compatible with Conventional Fire Alarm Panels
Designed for conventional fire alarm control panels and wired fire alarm systems.
Built-in 470Ω Resistance
Built-in 470 Ohm resistor for stable and reliable system connection.

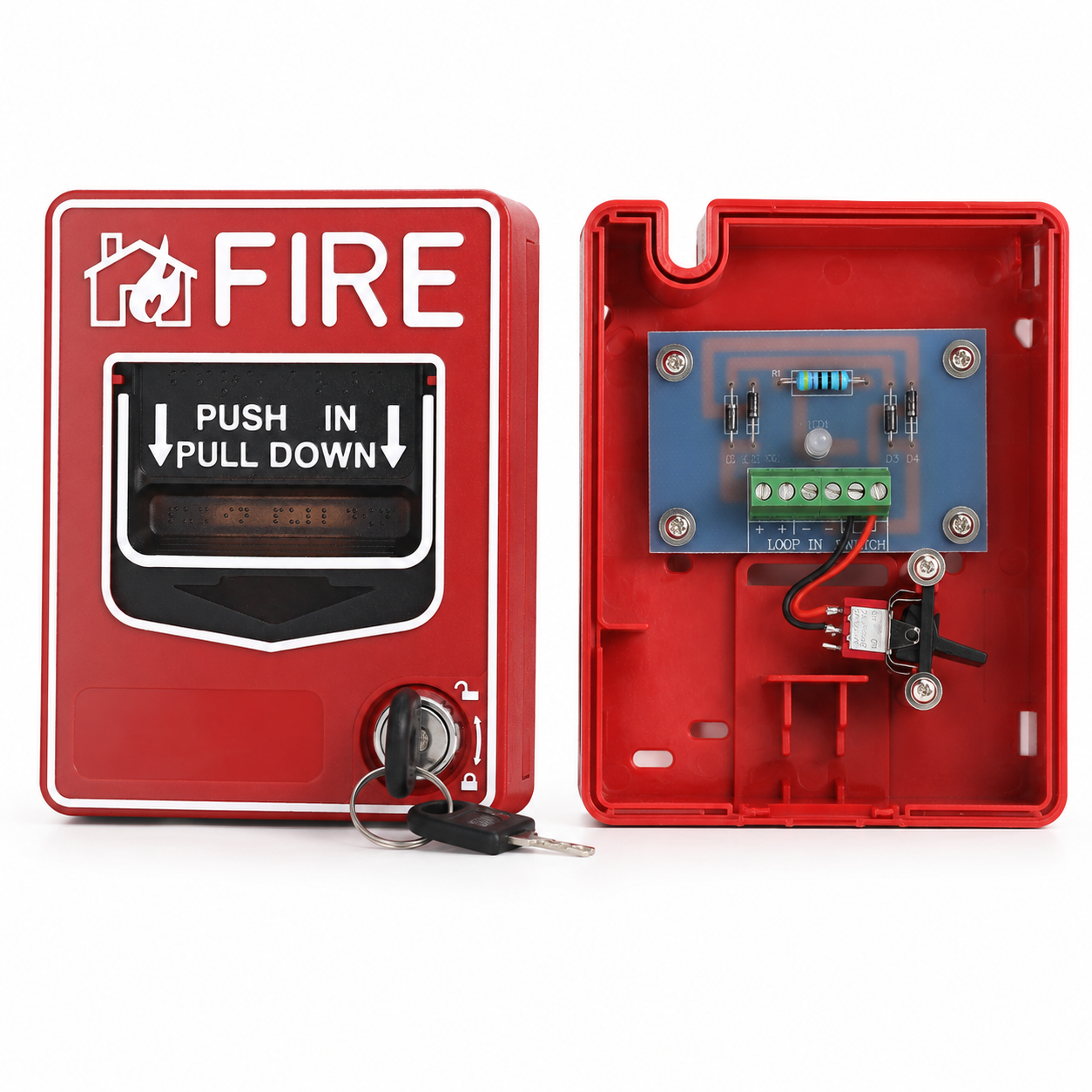

Easy Surface Mounting
Surface mounting base is included, making installation quick and convenient.
Clear Fire Alarm Marking
Red housing with clear FIRE marking and push/pull instruction, highly visible in emergency areas.
Durable Housing
Strong red ABS housing, suitable for long-term use in fire alarm and building safety systems.
Non-Polarized Wiring Design
Supports convenient loop wiring connection and helps reduce wiring errors during installation.

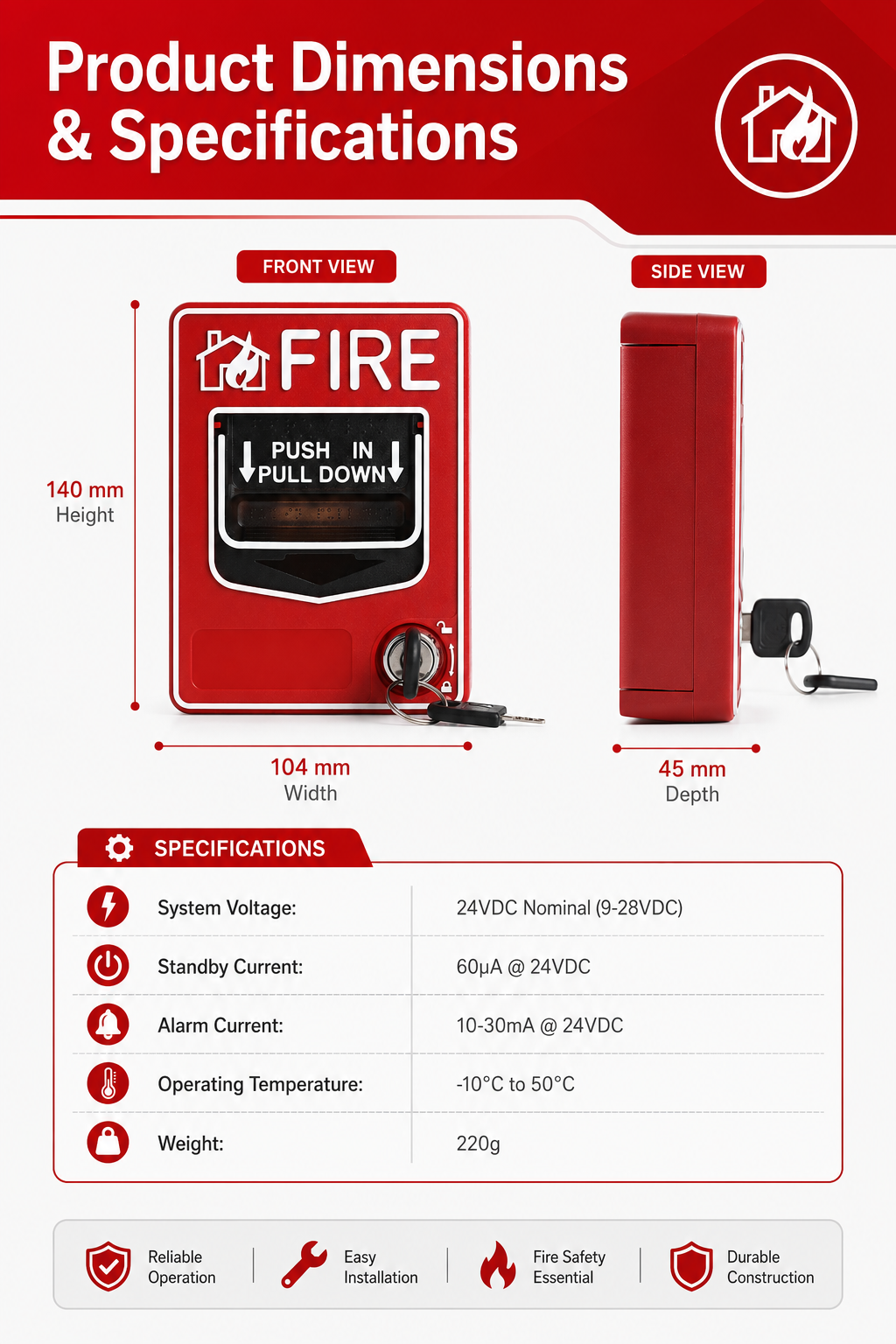

Specifications
Product Name: Manual Fire Alarm Call Point
Product Type: Resettable Manual Call Point / Fire Alarm Pull Station
System Type: Conventional Fire Alarm System
Operating Voltage: 24VDC nominal, DC 9V–28V
Standby Current: 60μA @ 24VDC
Alarm Current: 10–30mA @ 24VDC
Built-in Resistance: 470Ω
Reset Method: Reset by key
Activation Method: Push in and pull down
Wiring Type: Wired connection, non-polarized loop wiring
Operating Temperature: -10°C to 50°C
Operating Humidity: 10% to 93% RH, non-condensing
Dimensions: Approx. 140 × 105 × 45 mm
Weight: Approx. 220g
Mounting Method: Surface mount
Color: Red
Application: Fire alarm system, emergency alarm system, building safety system
Applications
Fire Alarm Control Panel
Emergency Fire Alarm System
Office Building
School
Hotel
Warehouse
Factory / Workshop
Shopping Mall
Apartment
Corridor / Public Area
Package Includes
1 × Manual Fire Alarm Call Point
1 × Reset Key
1 × Surface Mounting Base
Mounting Accessories

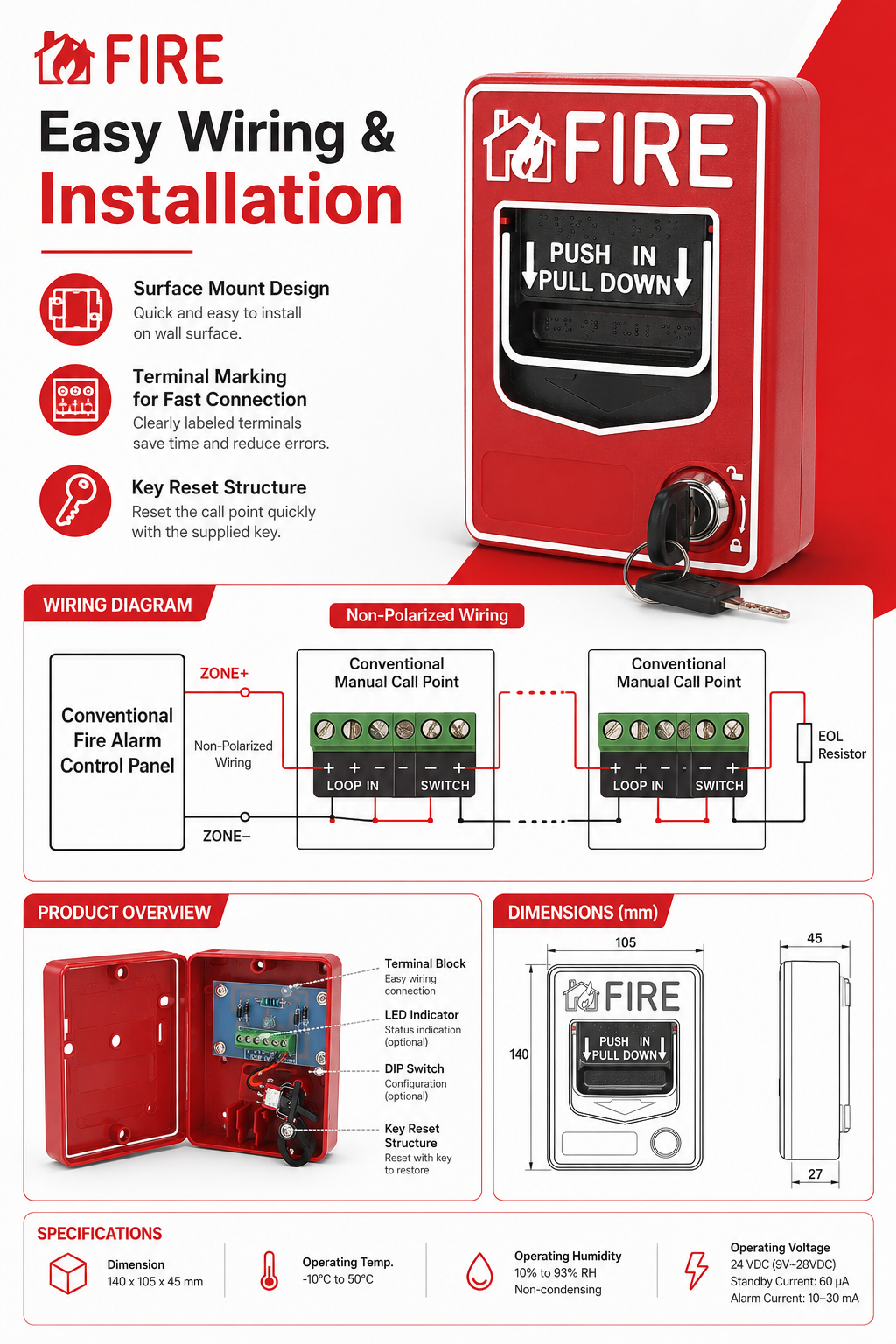

Installation Notes
Disconnect power before wiring or installation.
Connect the call point to a compatible conventional fire alarm control panel.
Follow the wiring diagram of your alarm panel and local installation requirements.
Press in and pull down the front plate to activate the alarm signal.
Use the supplied key to reset the call point after activation.
Installation should be completed by qualified personnel when used in fire alarm systems.
Important Notice
This product is a manual alarm activation device. It does not detect smoke, heat or flame by itself. It should be used together with a compatible conventional fire alarm control panel.
