ABT-100T
BONLOR
DC 12-24V
2 Beam
30-100 m
ABS
Infrared LED
Product details
Certificate
Comments
Contact Supplier
Type:
Solar infrared beam
Solar wireless beam sensor
Solar infrared fence detector
Features:

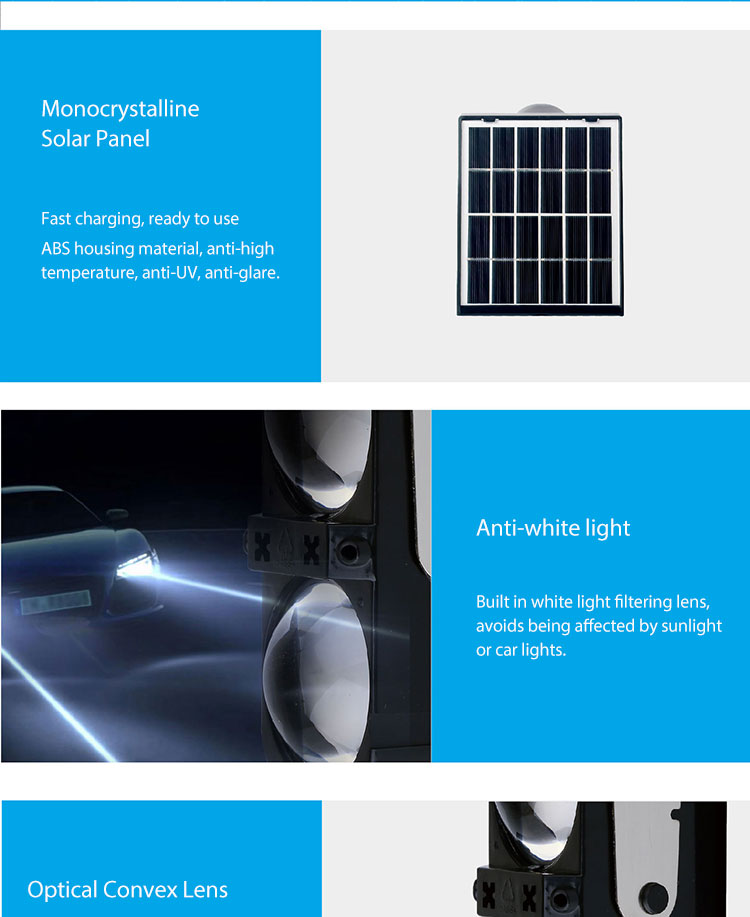

1. Large-scale solar power supply, fast charging
2. Low power consumption, lasts about 30 days
3. 4 channel frequency,anti-interference,solves the problem of mutual interference
4. Intelligent Digital signal display for easily alignment, save the time
5. Beam sensor sensitivity could be adjusted
6. Demist function is available to added with the heater

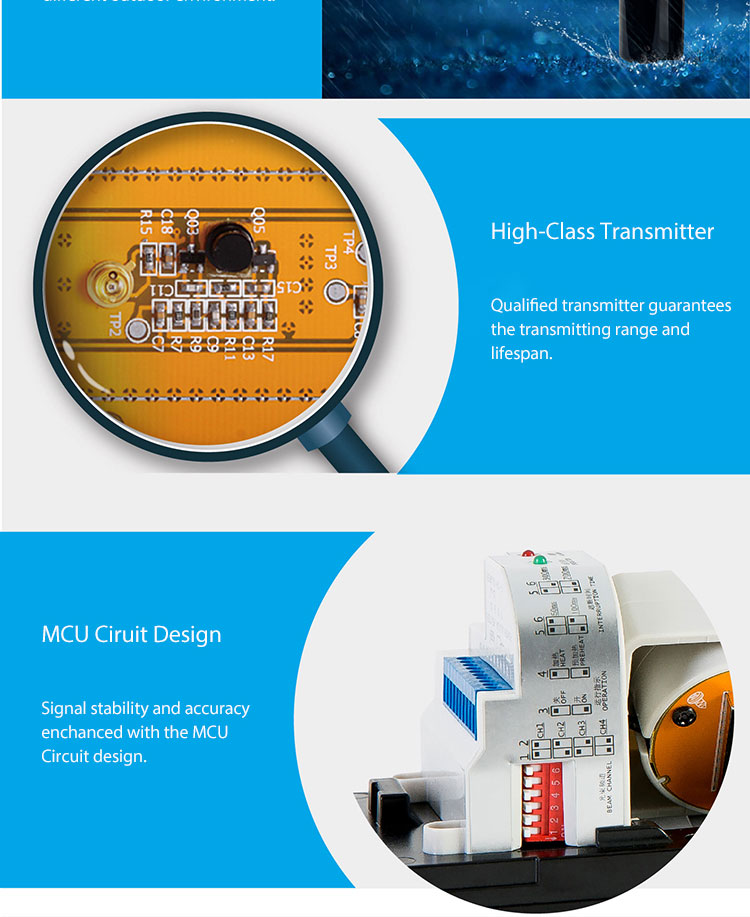

7. MCU circuit design made it signal stability and accuracy enhanced
8. Alignment angle:±90°horizontally,±10°vertically

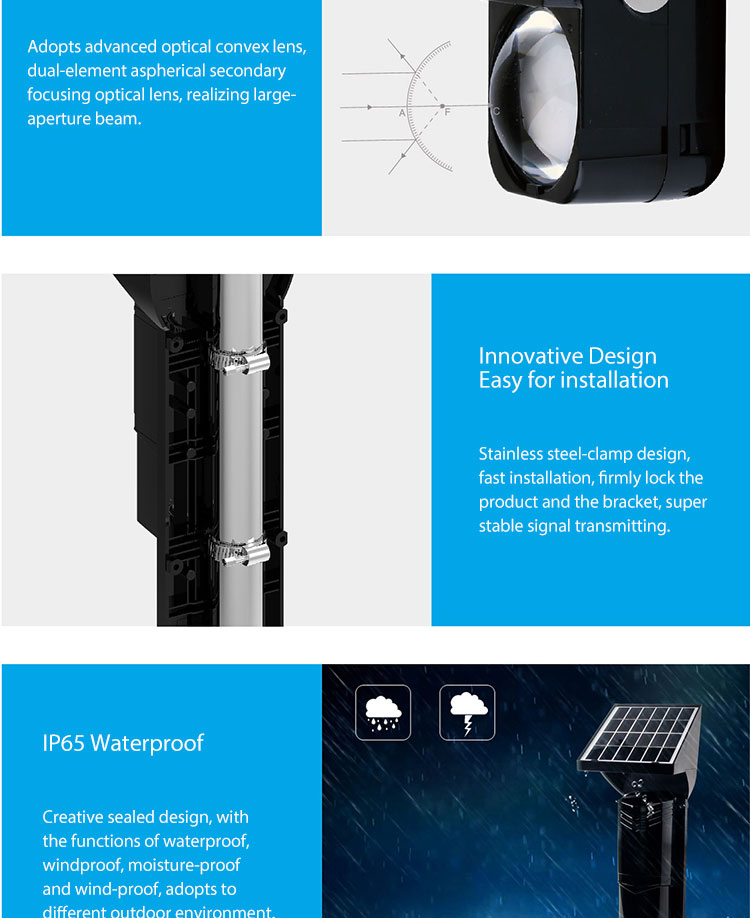

9. Waterproof grade IP65
10. Pet immunity, insect prevention,current limiting protection
11. Anti-tamper function
12. Multiple range optional 30m, 60m, 100m
Solar-powered wireless beam sensor is a new environment-friendly product. It uses solar panel to charge & work, and use wireless signal transmission to receive the alarm signal.Which is easy for installation without cable connection. Once all beams are interrupted in the same time, the alarm will be triggered, reducing false alarm caused by small animals and fallen leaves.
Specification
Model
ABT-30m
ABT-60m
ABT-100m
Detecting Range
Outdoor
30m
60m
100m
Indoor
60m
120m
200m
Beams Detecting Method
Both beams are interrupted in the same time
Sensing Speed
100ms
Beams Frequency
4 channel options
Voltage
3.3V
Power Supply
Solar powered or DC 12V
Current
85mA max
Wireless Frequency
315MHz or 433MHz ASK/OOK
Maximum alarm times in 24 hours
≤50 times/ Day
Anti Tamper
Normally Closed ,open when the housing is taken off
