Emergency Button

SF-109F Security Panic Button Alarm Emergency Door Release Button Push to Exit Button Resettable Manual Call Point Fire Alarm

Product Attribute

Model Number:SF-109F
Brand Name:BONLOR
Product name:Alarm system emergency button
Network:NO/NC/COM
Material:ABS
connection method:Wired

Type:

Emergency door release button
Manual call point with reset key

Product Description:

Suitable for fire alarm system, access control, alarm system, exit doors
Strong stability, can be recycling used

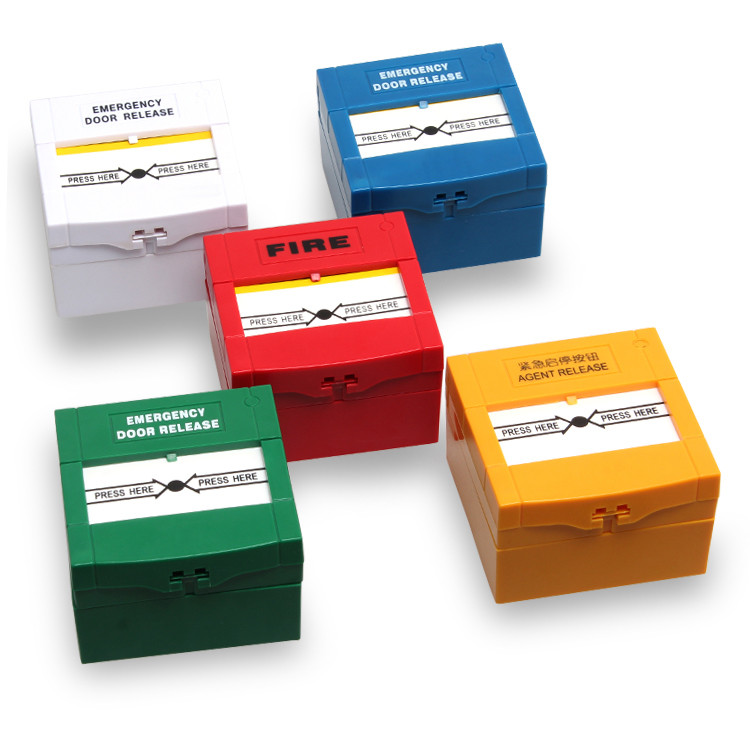

Available color: red/blue/orange/white/greenFire resistant ABS material, easy installation
NO, NC, COM terminal for cable connection
Transparent front cover selectable
Easy reset by key

Characteristic:

*Size: 86*86*50 mm, wall mounting or inserted

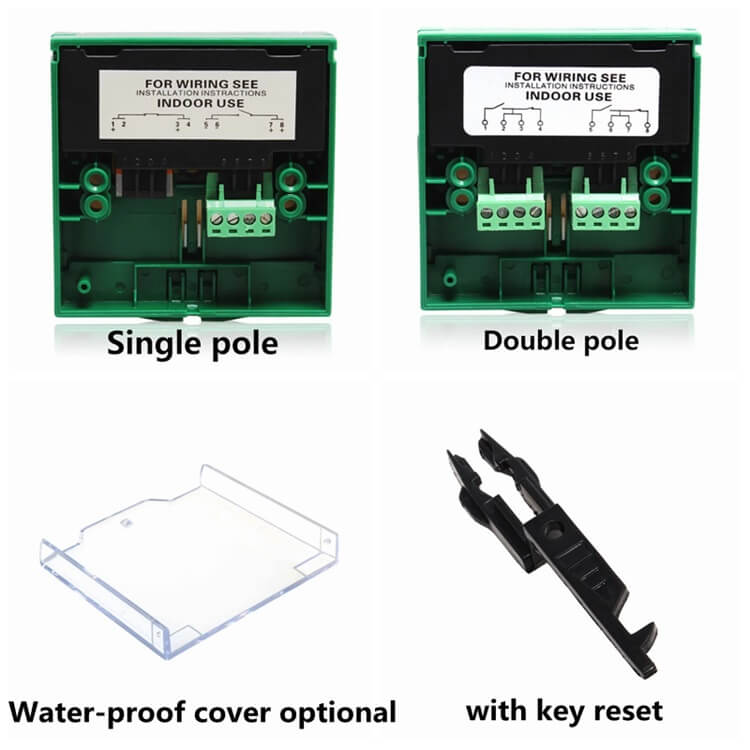

*Single pole or double pole available

Manual alarm call points are designed for the purpose of raising an alarm manually once verification of a fire or emergency condition exists, by operating the push button the alarm signal can be raised.

Specification

Item	Manual call point
Model	SF-109F
Voltage	12V/24V
Max.Current	1A
Output Contact	NO/NC/COM
Pole	Single pole or double pole
Operating Temperature	-10℃~65℃
Working Humidity	10%-90%
Optional Colors	Red,Green,Yellow,Blue,White
Optional Accessories	Transparent Plastic Cover
Material	ABS Fire Retardant Material
Installation	Wall mounted with screws
Dimension	868650mm
