Emergency Button

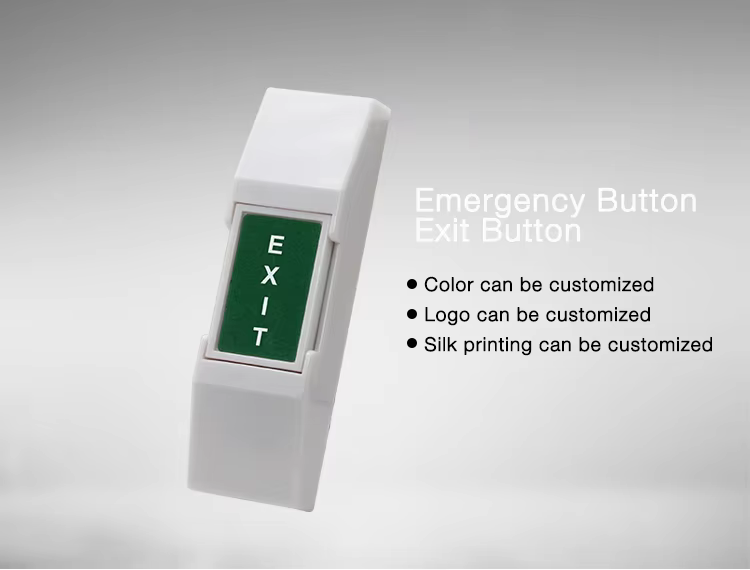

PB-28E Mini Size Plastic Door Release Exit Button 12v Emergency Exit Push Button for Access Control

Product Attribute

Model Number:PB-28E
Brand Name:BONLOR
Product name:Alarm system emergency button
Network:NO/NC/COM
Material:ABS
connection method:Wired

Type:

Emergency button
Wired panic alarm button for alarm system
Door release exit button

Product Description:

Easy operation by pressing the button when there is emergency

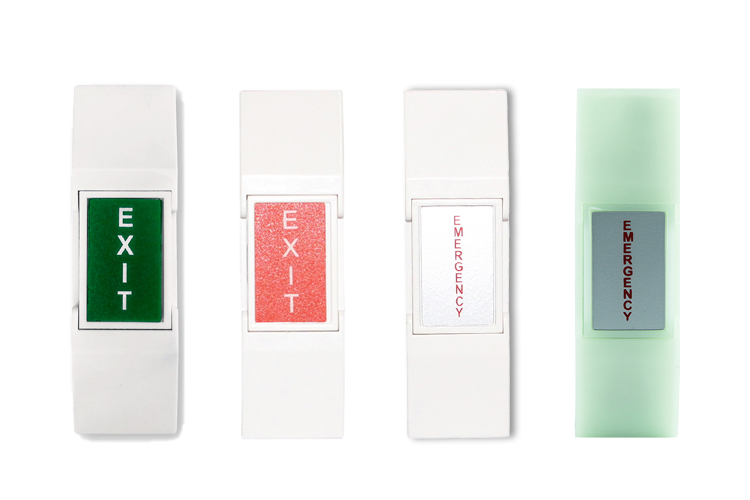

Multiple sticker on the emergency button selectable
ABS plastic material which is heat, abrasion resistance.
Normally open and close optional, for easy connection with any wired alarm system
Automatically reset

The emergency button is designed for the end user to press to trigger the alarm when there is any panic, emergency or alarm or for the purpose of door release. It is usually installed where it can be easily reached in the house or apartment, banks, or shops or to release door for exit purpose.


Specification

Item	Door release exit button
Model	PB-28E
Voltage	12VDC/24VDC
Current Rating	0.3A
Rated Voltage	250VDC
Output Contact	NO & NC optional
Function	Access control/door release
Material	ABS fireproof

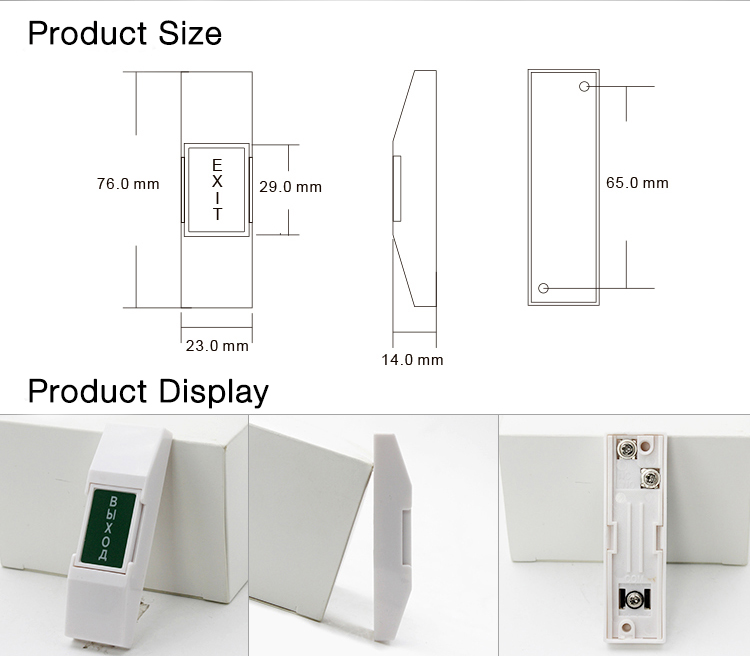

Dimension	76L23W14H(mm)
