Emergency Button

SF-XF01 Wired Security Manual Reset Button Hands Break Glass Manual Call Point for Fire Alarm Exit Release Door Emergency Button

Product Attribute

Model Number:SF-XF01
Brand Name:BONLOR
Product name:Alarm system emergency button
Network:NO/NC/COM
Material:ABS
connection method:Wired

Type:

Resettable fire alarm manual call point with buzzer&Led
Emergency push to exit button

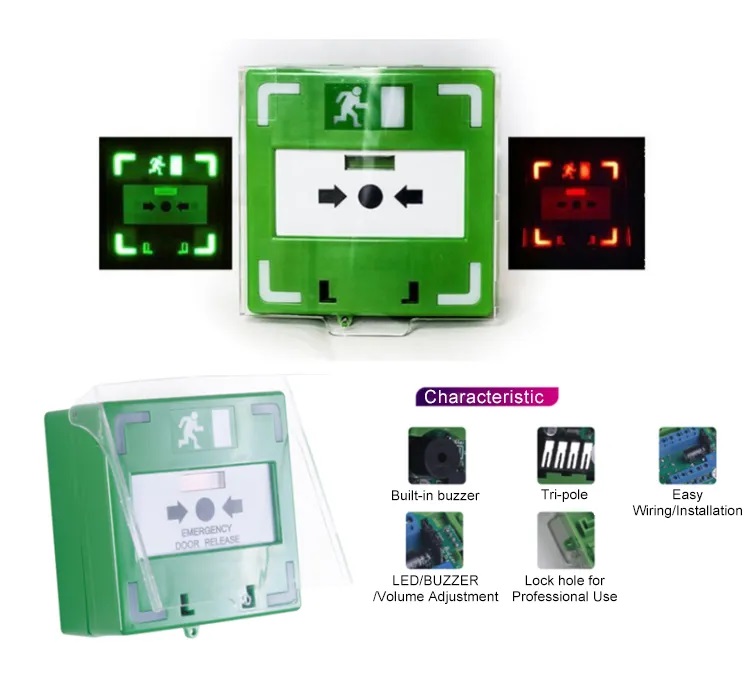

Features:

*Case has a variety of colors to select
*3 Pole ( 3 groups NC/NO/COM )
*LED continuing on or Flash optional
*Built-in buzzer status to set as silent, interval wailing or continuous wailing, volume is adjustable

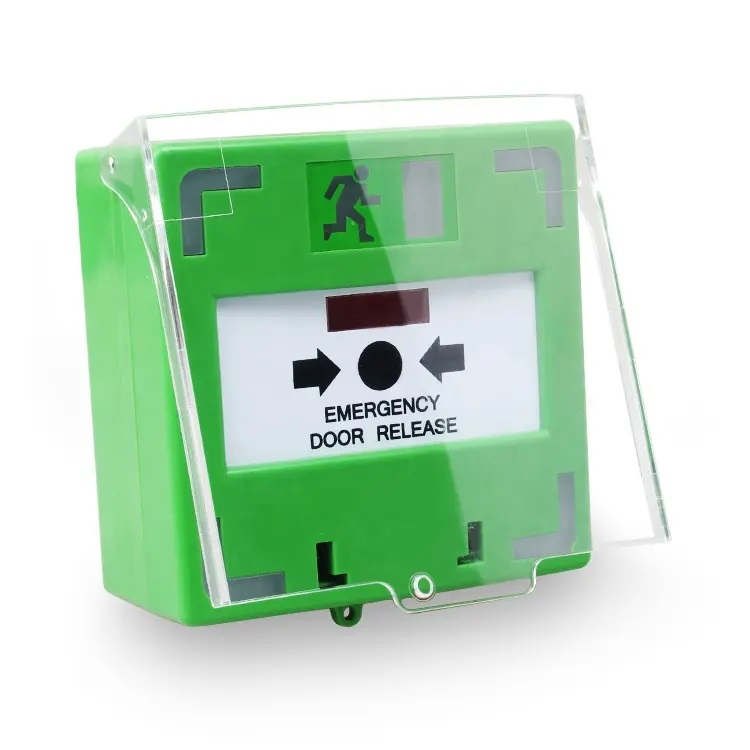

*Transparent dust cover

Featuring LED illumination, an internal buzzer, and 3 groups NO/NC/COM relay outputs, this 3-pole emergency call-point ('break glass' unit) benefits from 3 relay outputs, state-illumination, the optional internal sounder on the event of trigger and a resettable window with no breakable glass, meaning you don't need to replace the glass each time the call point is triggered.

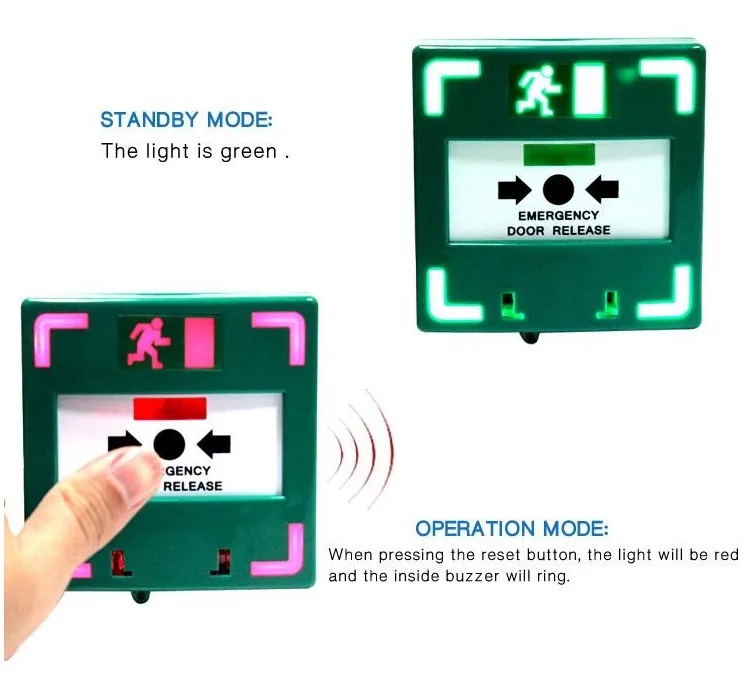

The illumination indicates the current state of the outputs - during 'standby' the unit will be lit green, and whilst operational, the unit will be lit red, as demonstrated in the photos available. Inside the call-point, you have an array of options available to you, with regards to the LEDs and internal buzzer. The LEDs can be switched to continue ON or Flashing. Similarly, the internal buzzer can be set as silent, interval wailing or continuous wailing, volume is adjustable.

Specification

Item	Resettable manual call point
Model	SF-XF01
Voltage	DC 12V~DC 24V
Operation Current	DC 12V/18mA(Standby)/75mA(Operation) DC24V/11mA(Standby)/41mA(Operation)
Output Contact	NO/NC/COM*3
Feature1	LED can be switched to continue on or flash
Feature2	Sound can be set to silent, interval wailing or continuous wailing

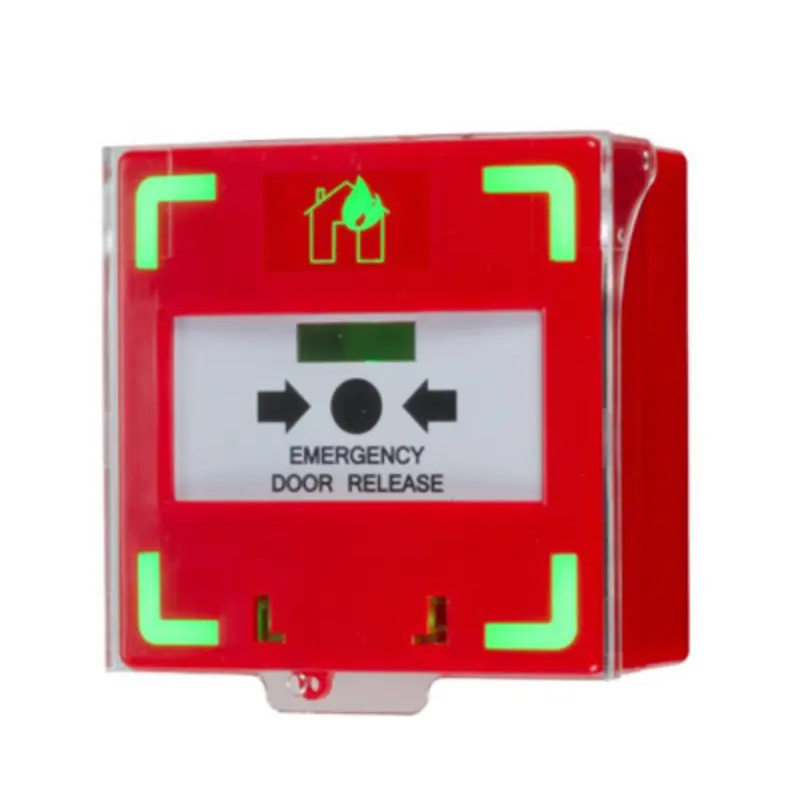

Optional Colors	Red,Green,Yellow,White
Material	ABS, PC(trasparent part)
LED Indicator	Default green, active red
Volume	Adjustable
Endurance Test	100,000 times

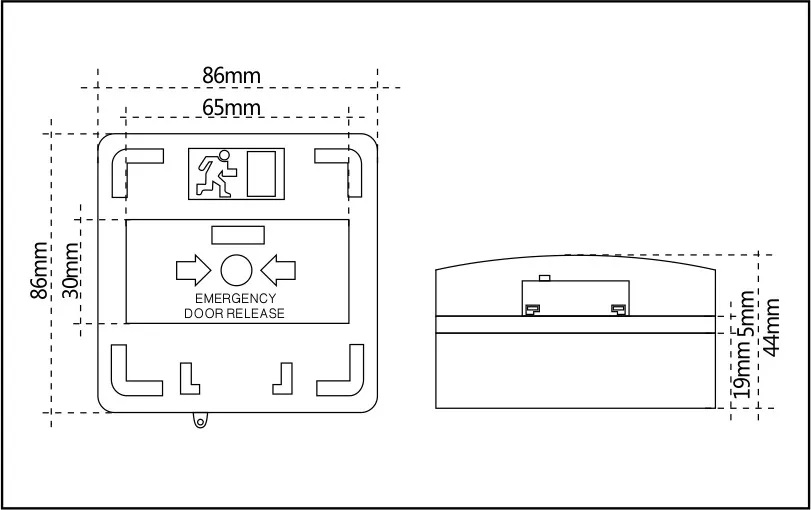

Product Size	868645mm
