ABT-150B Dual Beam Sensor Active Infrared Intrusion Detector Outdoor Perimeter Wall Barrier Fence for Home Security

ABT-150B Dual Beam Sensor Active Infrared Intrusion Detector Outdoor Perimeter Wall Barrier Fence for Home Security

Lead Time :2–7 days

Product Attribute
ABT-150B
BONLOR
DC 12-24V
2 Beam
30-150 m
ABS
Infrared LED
  • Product details
  • Certificate
  • Comments
  • Contact Supplier

Type:

Outdoor waterproof photoelectric infrared beam detector Dual beam sensor infrared detector 150m for perimeter security alarm

Product Description:

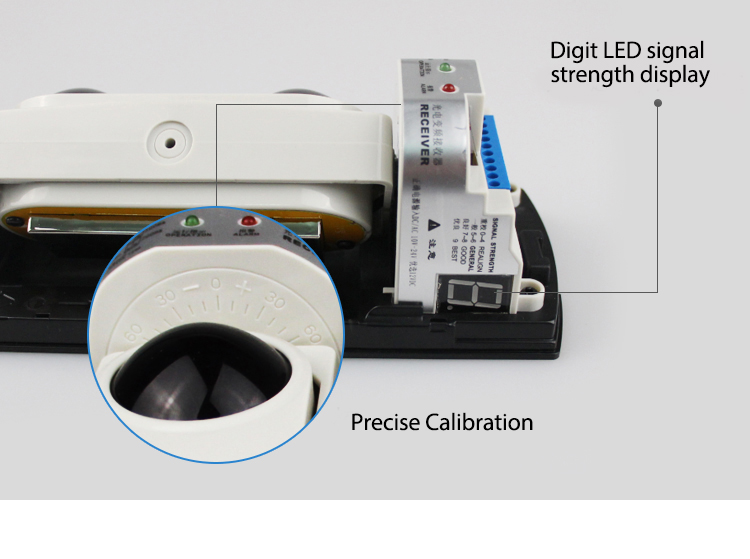

Easy alignment with visual LED indicator. 4 channel frequency selectable, avoid interference when muti-beam installation High signal stability and accuracy with MCU circuit design Waterproof grade IP65 Demist function is available to added with the heater to ensure it works in cold enviroment Built-in automatic light filtering up to 50000 lux, good performance against direct sunlight, completely against fluorescent and car light UV protection housing

Characteristic:

NC/NO relay output Tamper switch open when remove case Pet immunity, insect prevention,current limiting protection Multiple range optional 30m, 60m, 80m, 100m and 150m Angle adjustable horizontal and vertical Alarm delay time and interruption time optional
The active beam sensor is commonly used for window door or fence protection. Once the two beams are interrupted in the same time, the alarm will be triggered, reducing false alarm caused by small animals and fallen leaves.

Specification
Model
ABT-30m
ABT-60m
ABT-80m
ABT-100m
ABT-150m
Detecting Range
Outdoor
30m
60m
80m
100m
150m
Indoor
60m
120m
160m
200m
300m
Beams Detecting Method
Both beams are interrupted in the same time
Interruption Time
50ms,100ms,250ms,500ms(optional)
Beams Frequency
4 channel options
Voltage
10V-24V DC
Current
90mA max
Alarm Delay
2S ,50ms(optional)

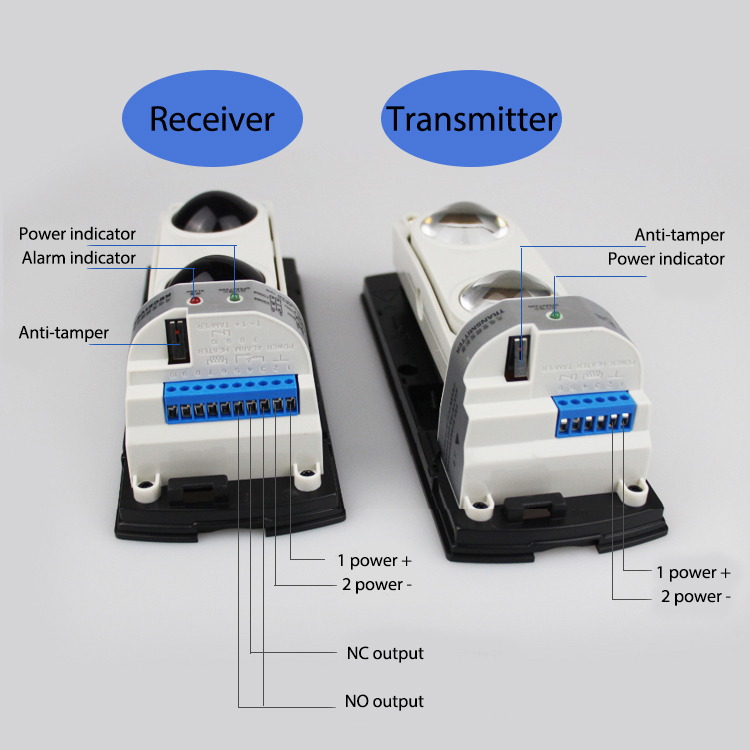

Alarm Output
Relay output 1C, output capacity DC 30v, 0.5 max
Anti Tamper
Normally Closed ,when the housiing is taken off
Water-proof Level
IP 65
Operating Temperature
-25℃- 55℃
Working Humidity
95% max
Adjustment Angle
Horizontal 180°(±90°),Vertical90°(±10°)
Installation Method
indoor/outdoor,wall mounted/pole mounted
Weight
900g
