SOS Alarm System

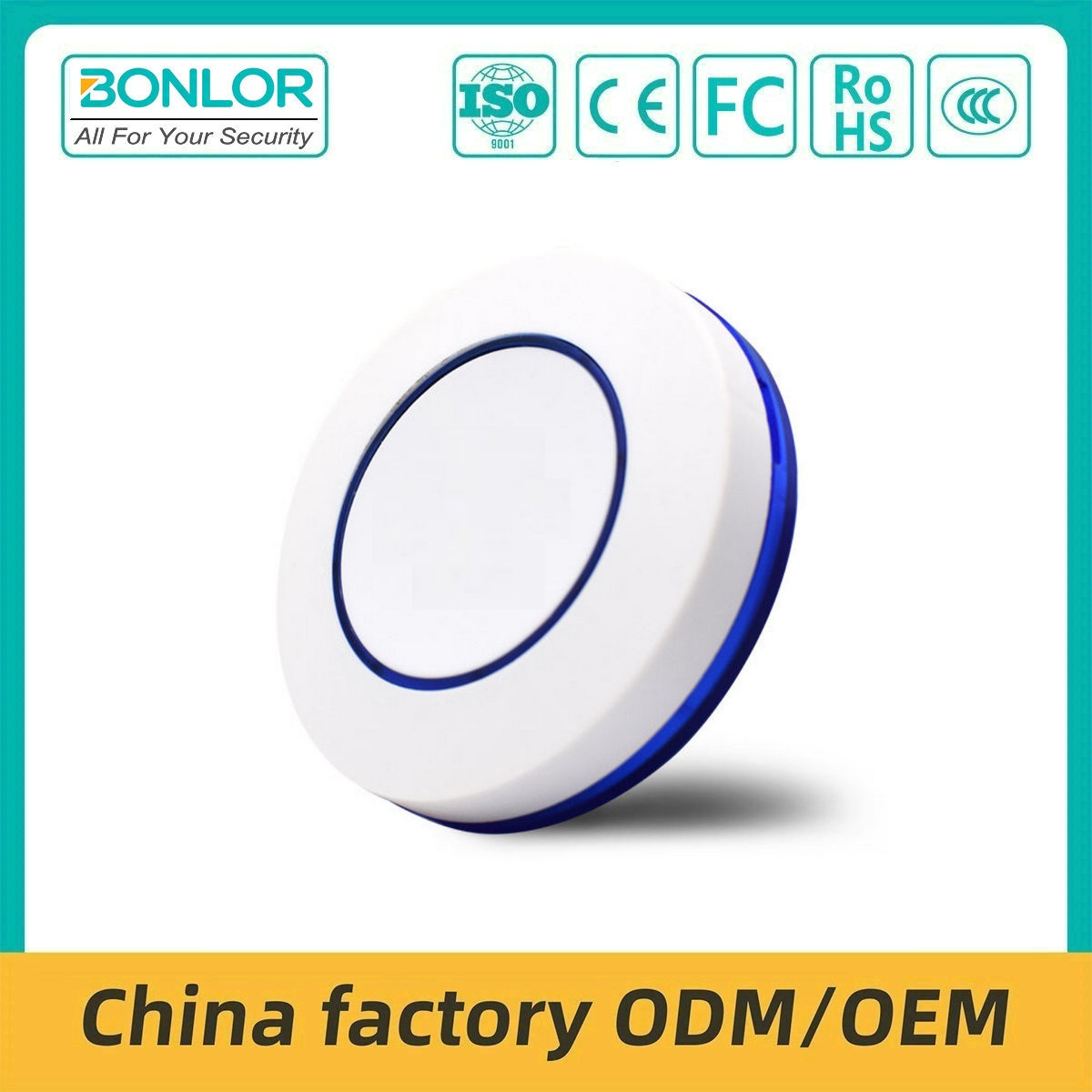

SF-S5 Round Shape Button RF Transmitter Wireless Remote Control 433 MHz EV1527 Roundness Design Remote Key Sticky Wall Panel

SF-S5 Round Shape Button RF Transmitter Wireless Remote Control 433 MHz EV1527 Roundness Design Remote Key Sticky Wall Panel

Lead Time :2-7days

Product Attribute
SF-S5
BONLOR
Alarm system emergency button
Wireless
ABS
433MHZ




  • Product details
  • Certificate
  • Comments
  • Contact Supplier
Name
1 CH Button RF Transmitter Wireless Remote Control 433 MHz EV1527 Roundness Design Remote Key Sticky Wall Panel
Operating frequency
433MHz
Transmit power
Greater than or equal to 10mW
Launch distance
30-50m(open space)
Frequency deviation
-0.2MHz ~ +0.2MHz

Description


1. Working voltage: DC3V ,CR2016 , 1PCS, Battery Inside: yes
2. Working current: Less than or equal to 10mA
3. Operating frequency: 433MHz
4. Transmit power: Greater than or equal to 10mW
5. Launch distance: 30-50m(open space)
6. Frequency deviation: -0.2MHz ~ +0.2MHz
7. Transmission rate: 50--60KHZ
8. Modulation method: ASK
9. Oscillation resistance: 330K
10. Working chip: Ev1527 (learning code remote control)
11. Working temperature: -20 degrees ~+70 degrees
12. Storage temperature: -10 degrees ~ +50 degrees
13. Weight:22g
14. SIZE: 50*13mm, button diameter 30mm

Operation method: The setting of the remote switch is determined,and it cannot clear the code.


Applications


Wireless RF remote controls are widely used to transmit data and signal control, mainly used for remote control electric
retractable doors, remote control gate brakes, remote control shutter doors, garage doors, sliding doors, remote control LED lights, remote control fireworks_igniter, remote control Passenger car door, anti-theft alarm, electric door alarm, video
surveillance shaking machine, wireless curtains, door locks, remote control of pumps, industrial control products, etc.

Include


1 x Remote Control

1 x double-sided sticker
Description:
1. Working voltage: DC3V ,CR2016 , 1PCS, Battery Inside: yes 2. Working current: Less than or equal to 10mA
3. Operating frequency: 433MHz
4. Transmit power: Greater than or equal to 10mW
5. Launch distance: 30-50m(open space)
6. Frequency deviation: -0.2MHz ~ +0.2MHz
7. Transmission rate: 50--60KHZ
8. Modulation method: ASK
9. Oscillation resistance: 330K
10. Working chip: Ev1527 (learning code remote control)
11. Working temperature: -20 degrees ~+70 degrees
12. Storage temperature: -10 degrees ~ +50 degrees
13. Weight:22g
14. SIZE: 50*13mm, button diameter 30mm
Operation method: The setting of the remote switch is determined,and it cannot clear the code.

Details Images
Packing&Shipping
1 pcs/small packing box, 50 pcs/bag 500/carton
