BR-10M 12-24V DC/AC Unilateral Wiring Reflective Photocell Sensor Single Beam for Gate Openers Access Control Security Alarm Systems

Product Attribute

Model Number:BR-10M
Brand Name:BONLOR
Power and Voltage:DC 12-24V
Beam:1 Beam
Detection Range:1-10 m
Material:ABS
Light source:Infrared LED
Wireless frequency:Wired

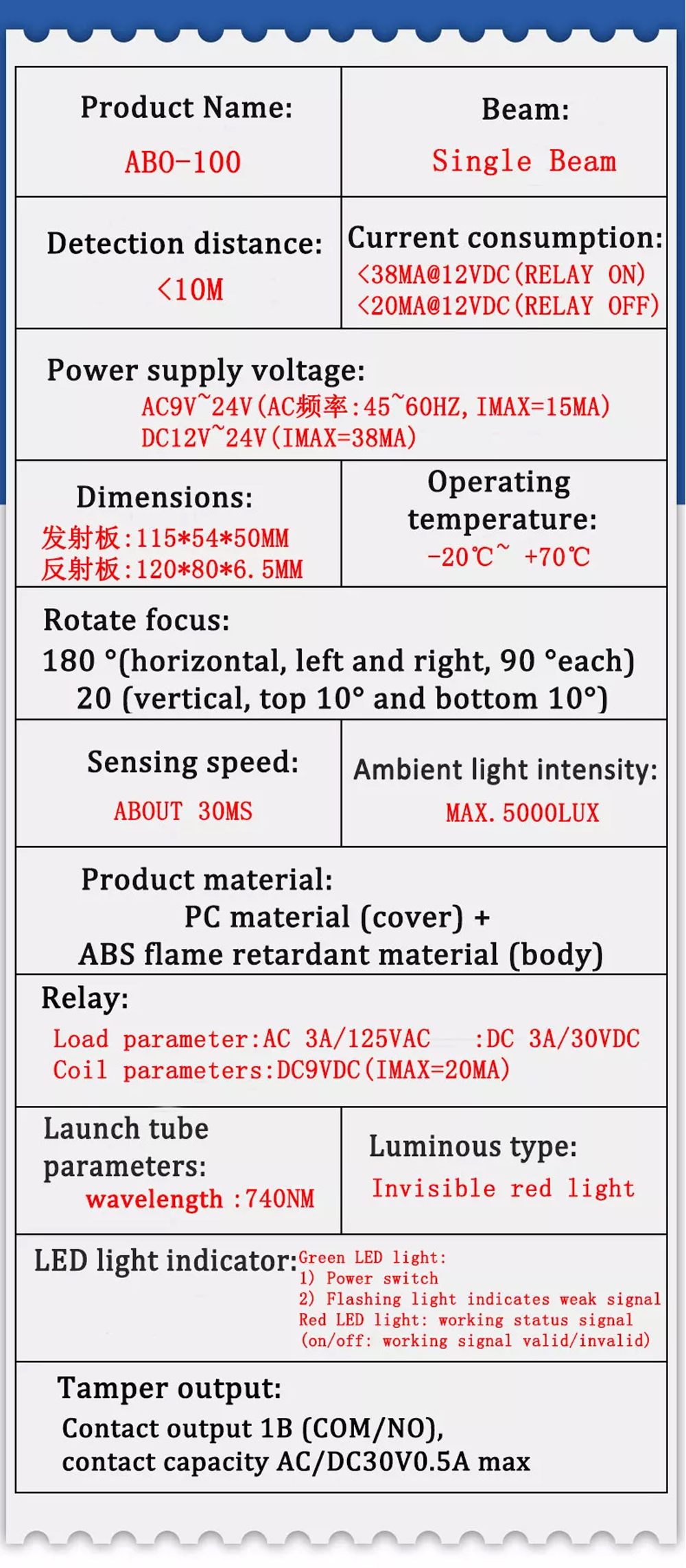

Technical parameters:

1). Operating Voltage: AC9V~24V (AC Frequency: 45~60HZ,Imax=15mA); DC12V~24V(Imax=38mA)
2). Working current: <38mA@12VDC (Relay on) <20mA@12VDC(Relay off)
3). Induction distance: <10m
4). Sensitivity: Fixed
5). Reaction time: about 30mS
6). Ambient light intensity: Max.5000lux
7). Emission tube parameters: wavelength: 740nm; luminous type: visible red light

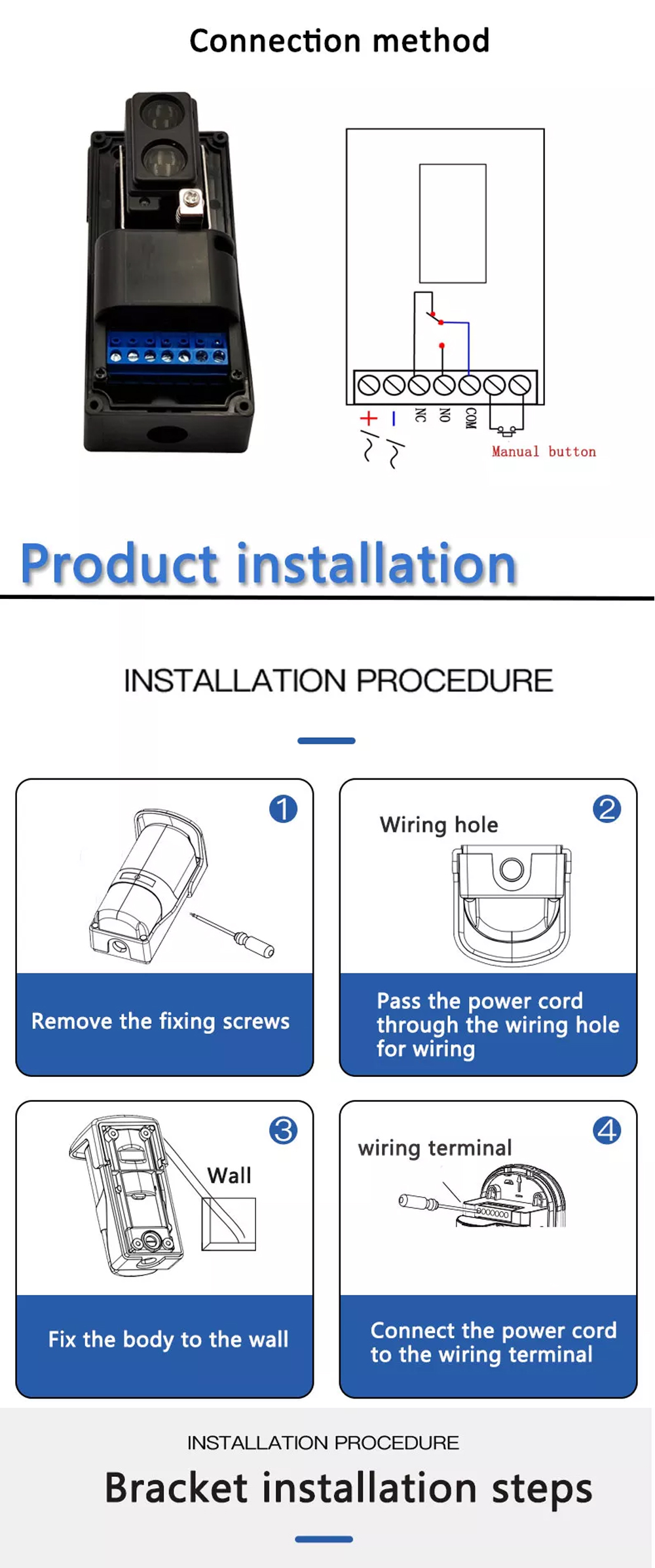

8). Relay:Load parameter: AC 3A/125VAC; DC 3A/30VDC; Coil parameters: DC9VDC (Imax=20mA)
9). LED indicator light: Green LED lamp: 1). Power switch; 2). Light flash indicates weak signal
Red LED lamp: working status signal (on / off: working signal valid / invalid)
10). Operating temperature: -20℃~ + 70℃
11). Storage temperature: -30℃~+ 80℃
12). Product Size (LxWxH): 115 * 54 * 50mm
Reflective plate (LxWxH): 120 * 80 * 6.5mm
