ABE-250B Wholesale Burglar Alarm Photoelectric IR Beam Detector Perimeter Alarm System Active Infrared Beam Sensor for Home Security

Product Attribute

Model Number:ABE-250B
Brand Name:BONLOR
Power and Voltage:DC 12-24V
Beam:3 Beam
Detection Range:50-250 m
Material:ABS
Light source:Infrared LED

Type:

Outdoor triple beam IR infrared beam detector 100mOnly when all beams are interrupted in the same time will trigger alarm
Wired Three active beam sensor for home intrusion alarm
CE certified and Rohs compliant outdoor perimeter detector alarm

Product Description:

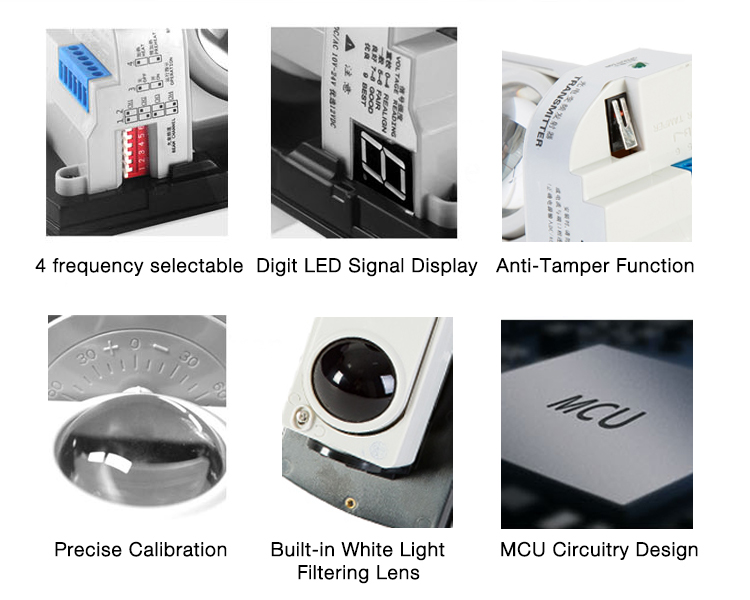

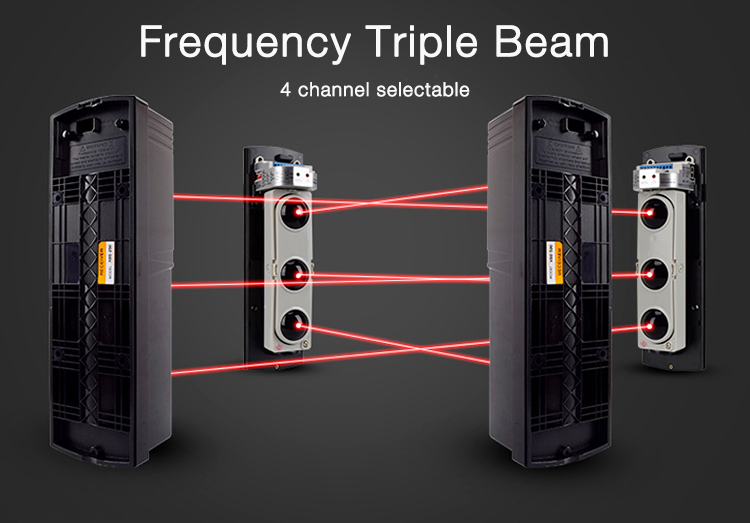

Easy alignment with visual LED indicator. 4 channel frequency selectable, avoid interference when muti-beam installation
High signal stability and accuracy with MCU circuit design

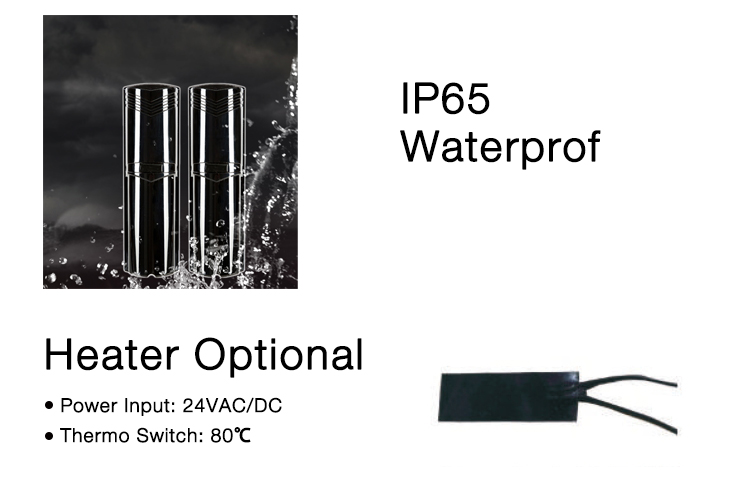

Waterproof grade IP65
Demist function is available to added with the heater to ensure it works in cold environment Built-in automatic light filtering up to 50000 lux, good performance against direct sunlight, completely against fluorescent and car light
UV protection housing

Characteristic:

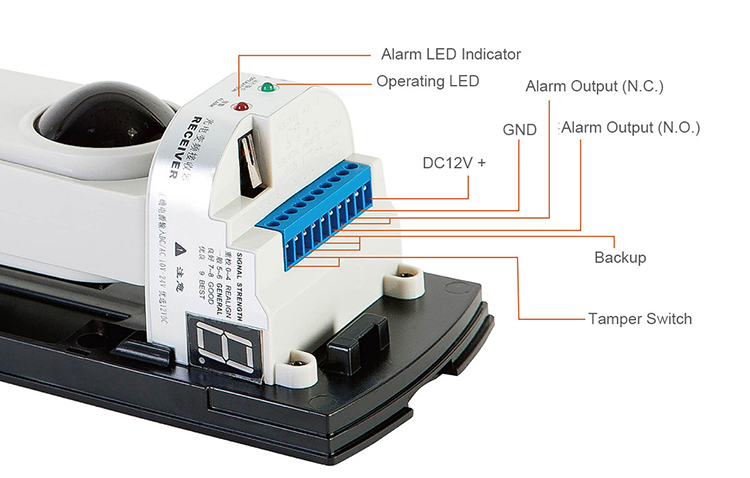

NC/NO relay output Tamper switch open when remove case

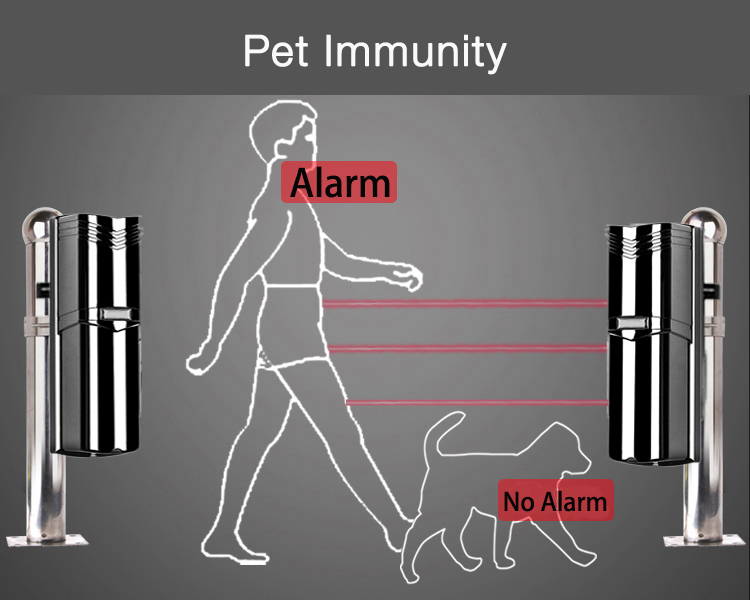

Pet immunity, insect prevention,current limiting protection
Multiple range optional 50m, 100m, 150m, 200m and 250m

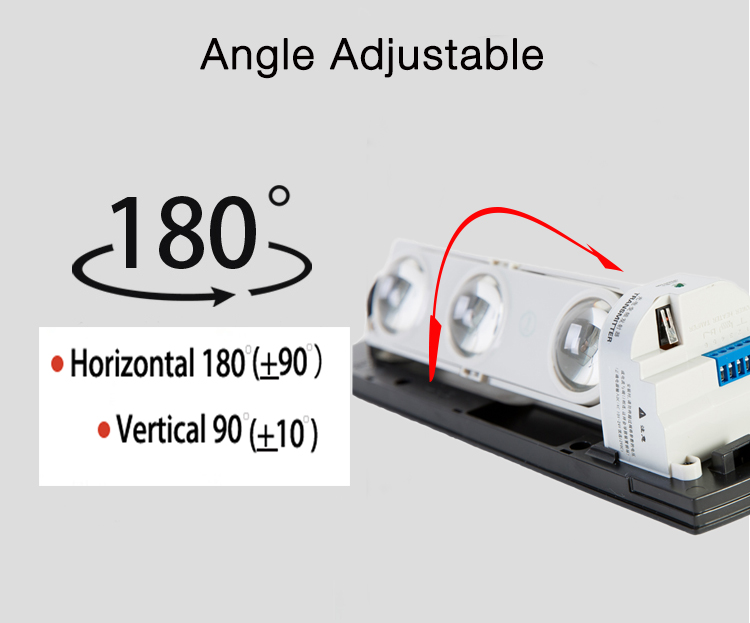

Angle adjustable horizontal and vertical
Alarm delay time and interruption time optional

Specification

Model		ABE-50m	ABE-100m	ABE-150m	ABE-200m	ABE-250m
Detecting Range	Outdoor	50m	100m	150m	200m	250m
	Indoor	100m	200m	300m	400m	500m
Beams Detecting Method		Both beams are interrupted in the same time
Interruption Time		50ms,100ms,250ms,500ms(optional)
Beams Frequency		4 channel options
Voltage		10V-24V DC
Current		90mA max
Alarm Delay		2S ,50ms(optional)
Alarm Output		Relay output 1C, output capacity DC 30v, 0.5 max
Anti Tamper		Normally Closed ,when the housiing is taken off
Water-proof Level		IP 65
Operating Temperature		-25℃- 55℃
Working Humidity		95% max
Adjustment Angle		Horizontal 180°（±90°），Vertical90°（±10°）
Installation Method		indoor/outdoor,wall mounted/pole mounted
Weight		1500g
