Magnetic Contacts

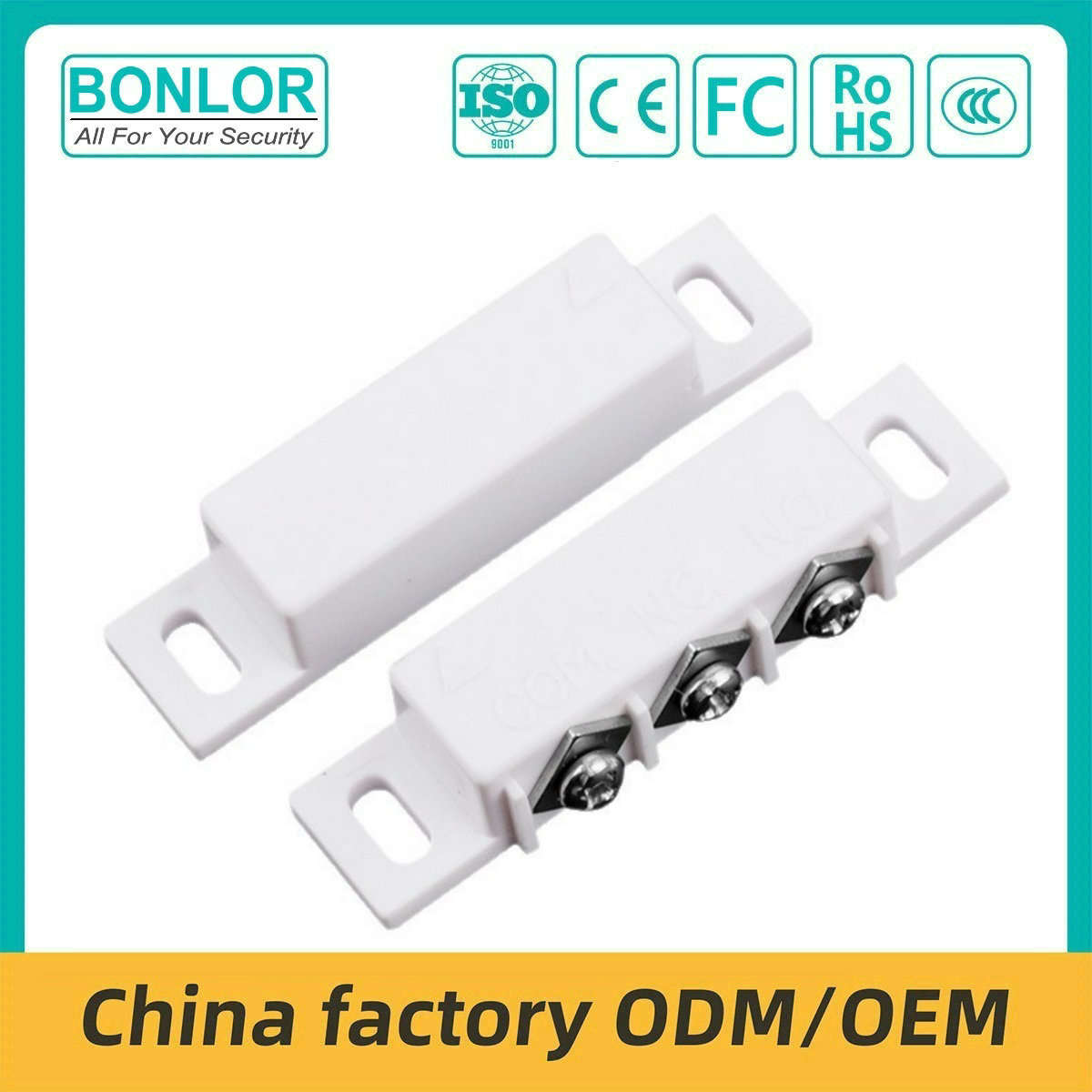

BR-31B Wired Exposed Window and Wooden Door Magnetic Alarm, Magnetic Switch Anti-theft Sensor

Product Attribute

Model Number:BR-31B
Brand Name:BONLOR
Usage:intrusion alarm
Type:Reed Switch
Housing material:ABS
Detection distance:≥15mm
Warranty:12 Months
Application:Door Window
Product name:magnetic contacts

Surface mounted magnetic switch

Ideal for wooden door/window

The BR-31B series surface mount magnetic contact is ideal for residential and commercial applications where terminal connects are preferred.The screws have combination heads that accept either Phillips or flat blade drivers. The terminals are angled away from the mounting surface to allow for quick and easy installation. Snap-on covers conceal the terminals and mounting screws for a clean professional appearance. Wide gap, SPDT, and high security models are available.

IMPORTANT: Align contact and magnet as directed on magnet base (switches are polarity sensitive). Attach contact and magnet to surface. Wire leads to terminals.

Housing: ABS material ; fireproof ABS housing is available on request

Color : white/brown/black

Gap:15-25mm;20-25mm

Certificates: CE

Screw terminal connect surface

Dimension: 55*22*11mm

Current / Voltage / Power：0.5A/100V/10W

Output：NC/NO/COM

Installation：surface mount

Connection: Terminal block wiring

Package：10sets / bag,1000sets/carton
