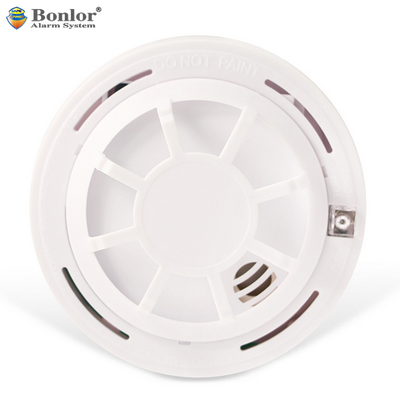

SF-613 4-wire optical heat detector

4 Wire Dc 24V Conventional Alarm Output Led Flash Heat Detector...

Power supply: DC9-24V
Detection angle: 360°
output signal: NC/NO
Detection method: Hate
Suitable venue: indoor
Transmit frequency: Wired

Product Details

Product Tags

Circular LED indicator for 360° visibility
Heat detecting mode

Non polar, 4-wire
Current/relay network output, N.O/N.C optional
Low power consumption
High density SMD technique
Anti-tamper switch
Unique bracket design, easy installation

Input Voltage:	DC 12-24V
Static Current:	15-25uA
Alarm Current:	40-50mA
Operating Humidity:	10%-95% RH (Non coagulating)
Operating Temperature:	-10°C- +55°C
Alarm Temperature::	Fixed Temp.: 57°C/137F Rate-of-rise: 8-15°C/Min
LED Indication:	Detecting: Green LED flash Alarm: Red LED ON
Detecting Sensitivity:	m=0.15-0.5dB/m-1
Wiring Mode:	2-wire/3-wire/4-wire
Installation:	Ceiling mounted
Detecting Area:	60m²(with 4 meter height)
Dimension:	Φ100*45mm
